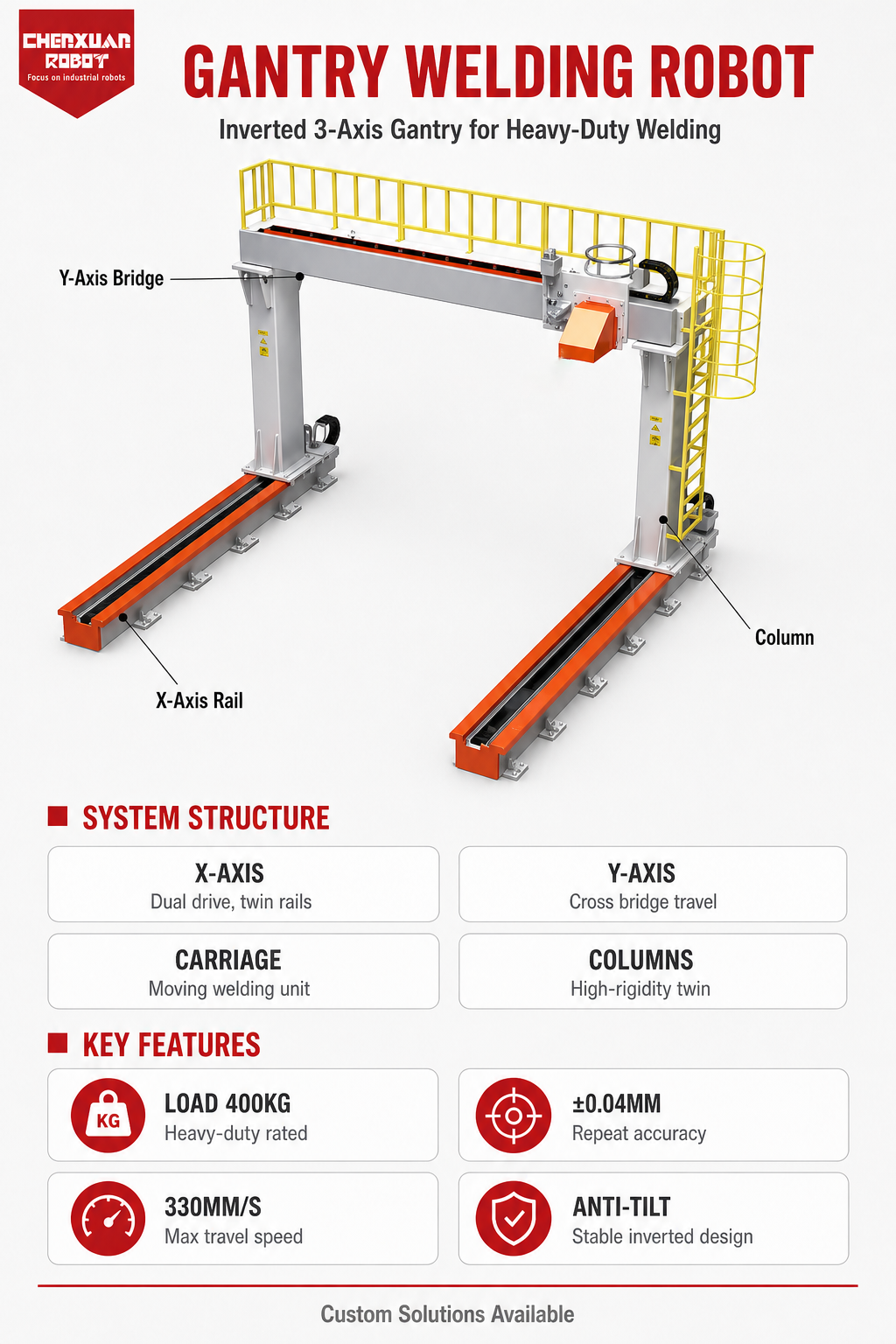

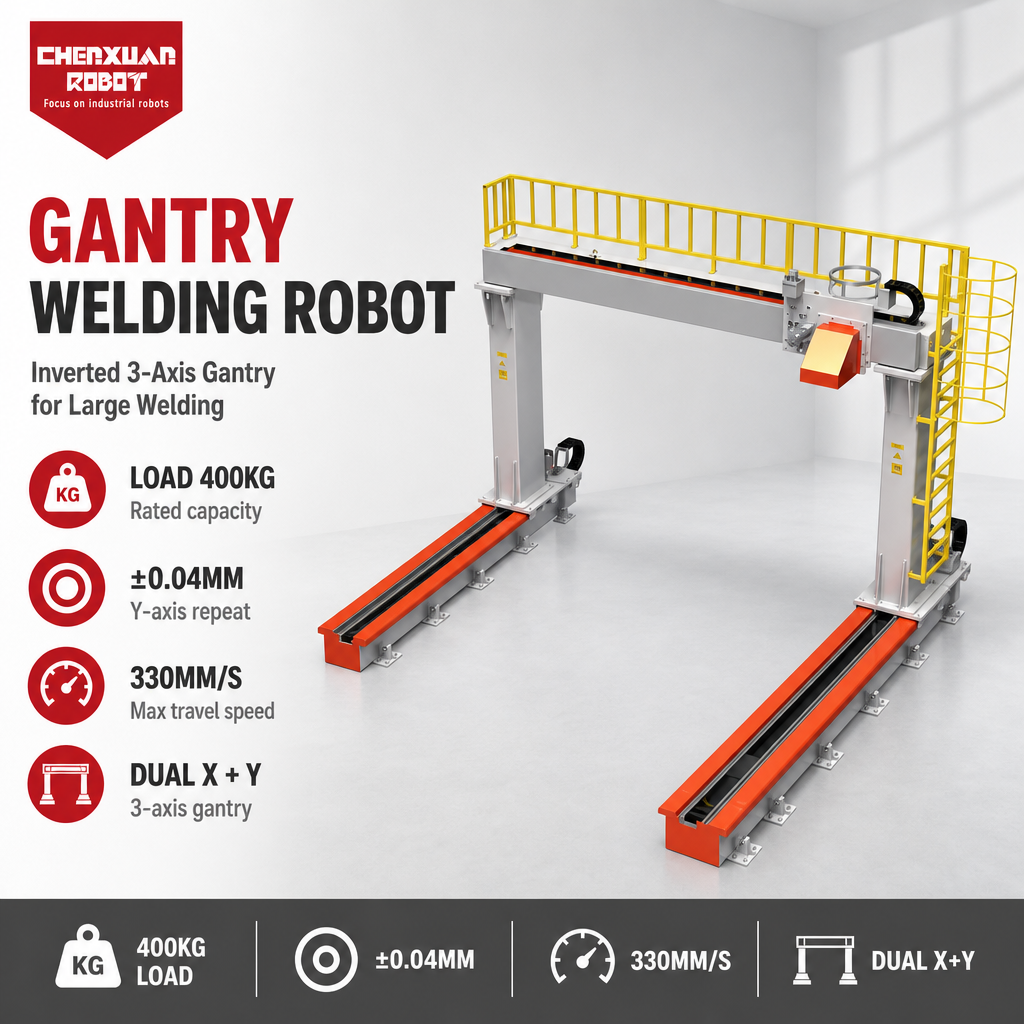

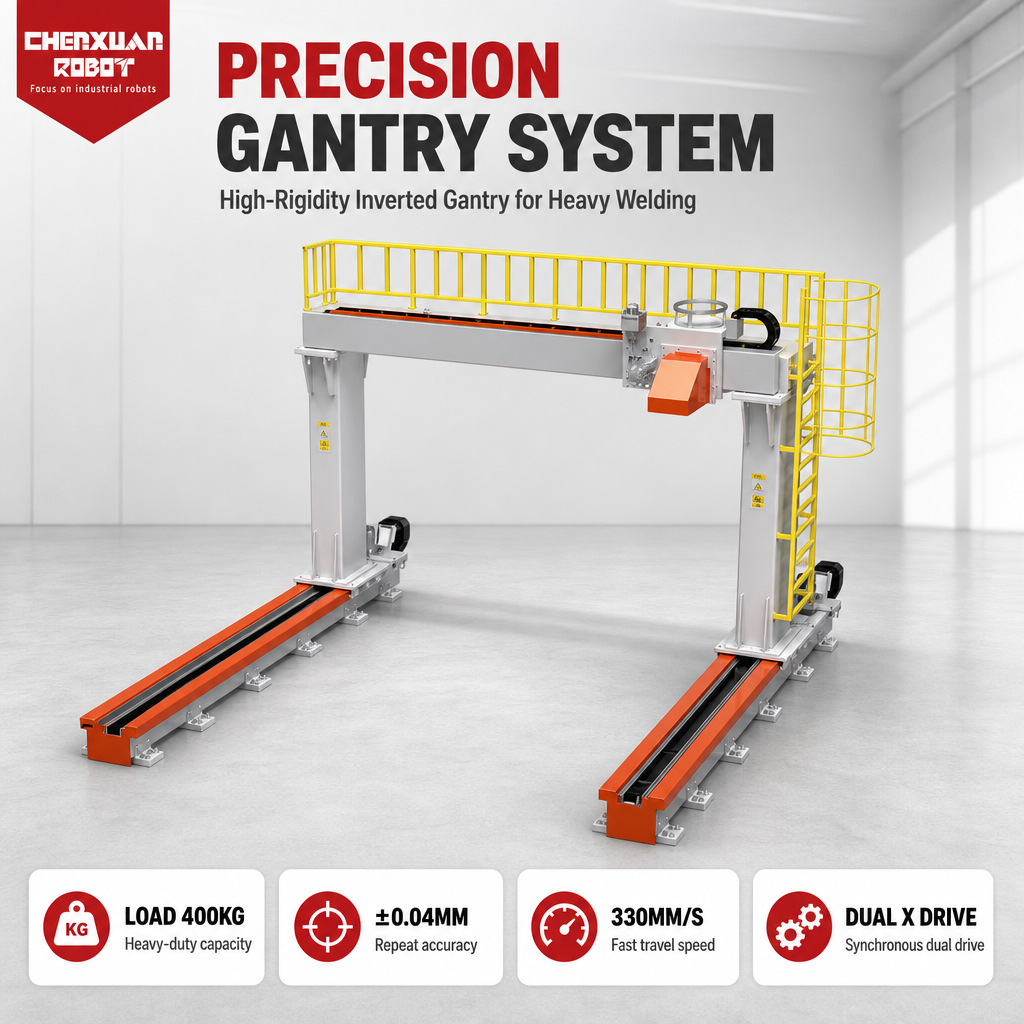

Chenxuan Precision Inverted Gantry System, engineered for heavy-duty welding. Adopting synchronous dual X drive with high rigidity. It supports 400kg load capacity, ±0.04mm repeat accuracy and 330mm/s rapid traverse speed. Ideal for automatic welding of large workpieces, delivering stable and efficient production for heavy steel structure manufacturing.
Product Information
PRODUCT HIGHLIGHTS
- This inverted gantry robot adopts high‑rigidity frame structure, which can maintain steady operation while carrying relatively heavy welding execution units.
- It supports a heavy load capacity, offering reliable driving conditions for integrating different welding heads or multi‑robot combinations on the gantry beam.
- The repeated positioning accuracy performs well, which helps to keep consistent welding tracks for long‑size large structural workpieces during batch production.
- Dual synchronous X‑axis driving design reduces running deviation, making the whole gantry travel smoothly even at a relatively high moving speed.
- The maximum travel speed can reach a high level, which may shorten the idle movement time between welding stations and improve overall workshop productivity.
- The inverted installation mode reserves ground operating space, leaving more area for workpiece clamping fixtures and logistics turnover on the workshop floor.
- Complete three‑axis motion configuration meets the moving demands of large‑span welding paths for oversized frame and structural metal parts.
- Anti‑tilt structural design enhances the overall stability of the gantry frame during high‑speed acceleration, deceleration and long‑distance reciprocating movement.
- The mechanical structure is optimized for long‑time continuous operation, adapting to the non‑stop working mode of large‑scale automated welding workshops.
