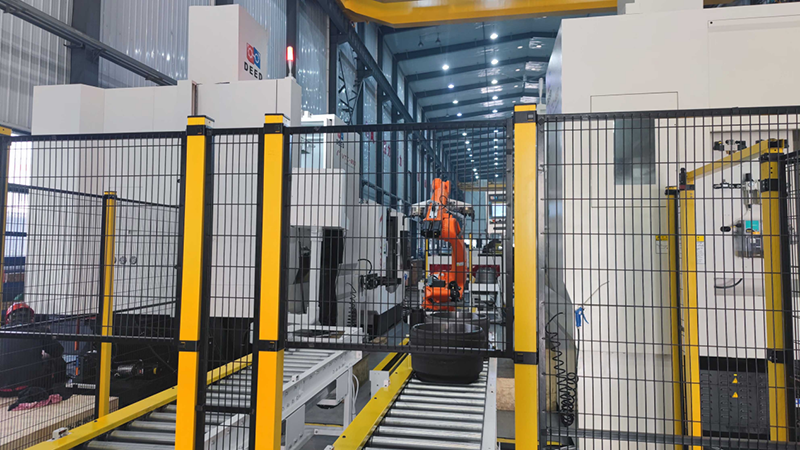

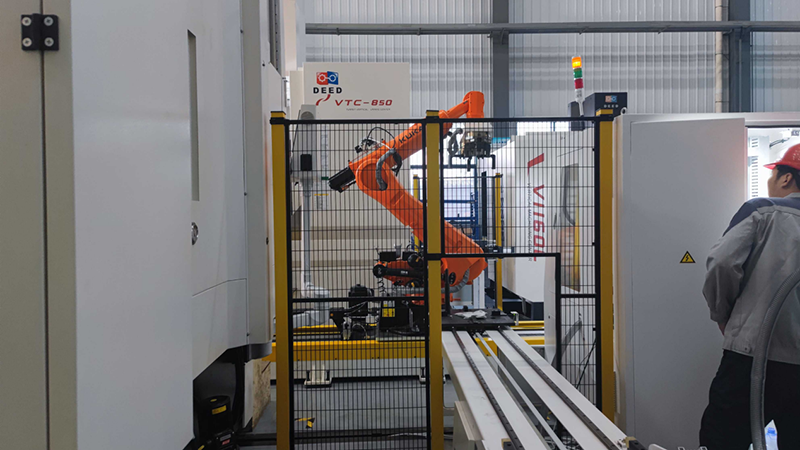

The case I want to share with you today is the loading and unloading workstation of the brake drum machine tool. This project adopts a handling robot, taking materials from the feeding roller line, setting up the car, turn over, adding the loading and unloading of the machine tool, and cleaning the unloading after dynamic balance detection.
The project difficulty, the weight of the workpiece is relatively large, the processing accuracy requirement is high, the vertical car and the vertical processing position is different, resulting in the different direction of the clip, the need to turn, the processing surface requires no iron chips.

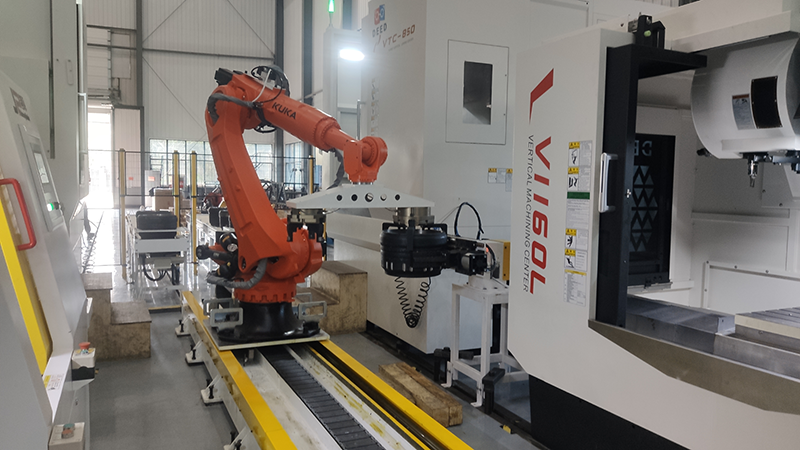

Highlight of the project, the loading and unloading conveying lines are controlled by sections, which can increase the cache and prevent the collision of the processed workpiece from affecting the surface processing quality. The robot grip adopts the double position three claws inside and outside clip, and the turning two claws outside clip, which can not only realize the loading and unloading of the car, but also ensure the accuracy of loading and unloading. Add high pressure ring blowing air to solve the residual iron filings and cutting fluid on the surface of the workpiece.
Post time:
Dec-18-2023
行业背景与项目启示
“Case sharing-brake drum machine tool loading and unloading workstation”需要结合真实制造目标理解。读者应关注该动态希望解决的产能、质量、用工或交付问题，并判断方案是否适配工件、工艺流程和现场条件。
进一步沟通应重点覆盖the intended process, payload and reach needs, tooling, safety concept, integration interfaces and the measurable result expected from automation，并通过图纸、样件、节拍数据或现场评审验证关键假设。
项目评估可从工件尺寸与种类、年产量、目标节拍、质量标准、能源介质和场地限制开始，再明确安全边界、上下游接口、换型方式和维护空间。
实施前还应约定可量化的验收标准，例如重复精度、工艺一致性、单位时间产量、换型时间、报警恢复和人员负担，并保留培训、参数备份和维护资料。
